Key features
Production-focused configuration.
- Compact portable format
- EZCAD2 control
- Windows-compatible workflow
- Air-cooled laser source
Laser Equipment / Laser Marking

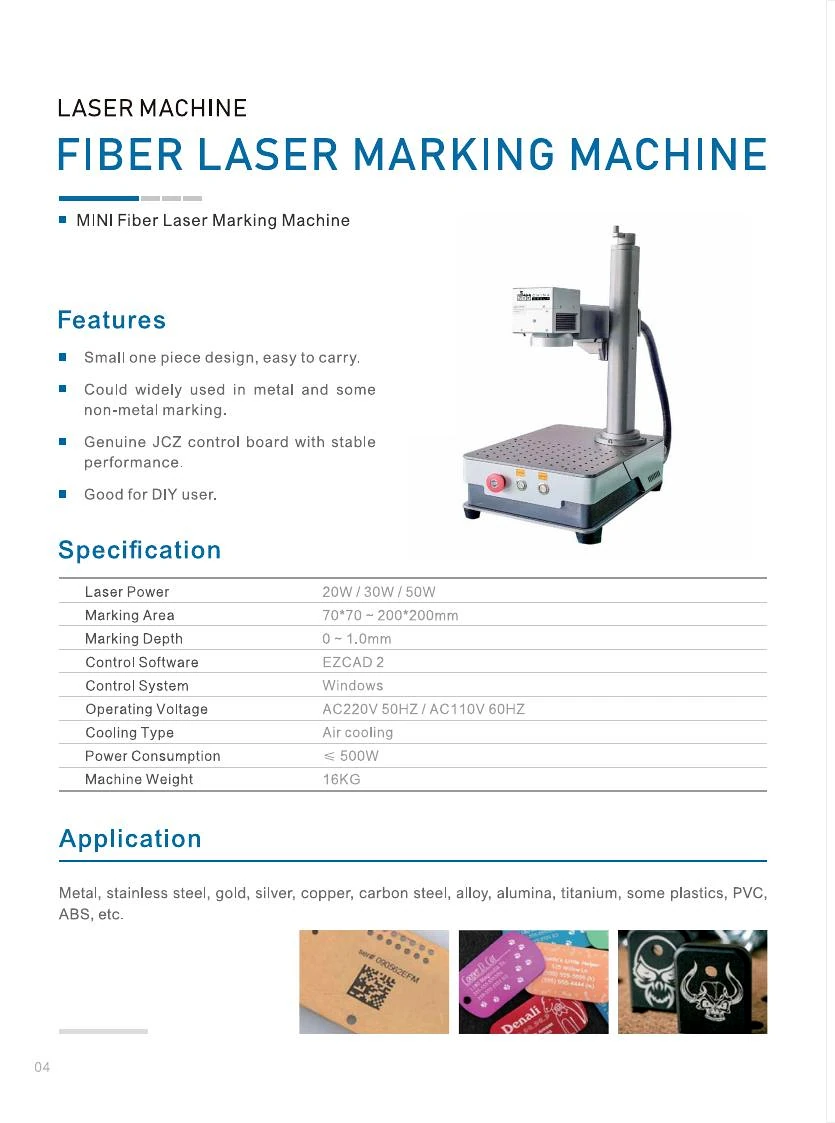

Mini Fiber Laser Marking Machine
Industrial equipment specifications from the NBG Machines catalog, organized for application review and quotation.
Technical overview
Catalog specifications.
Options shown in the catalog must be confirmed against your workpiece, process, capacity, voltage and destination requirements.- Laser power
- 20 / 30 / 50 W
- Marking area
- 70×70–200×200 mm
- Marking depth
- 0–1.0 mm
- Power consumption
- ≤500 W
- Weight
- Approx. 16 kg
Applications
Typical use cases.
- Nameplates
- Small metal parts
- Workshop and service marking
Share the material, workpiece dimensions, required process, expected throughput, power standard, destination and acceptance criteria. NBG Machines will confirm the applicable configuration rather than treating every catalog option as standard.
