Key features
Production-focused configuration.
- 45° slant bed
- Long-bed options
- Large spindle bore options
- High-speed X/Z traverse
CNC Machine Tools / CNC Lathes

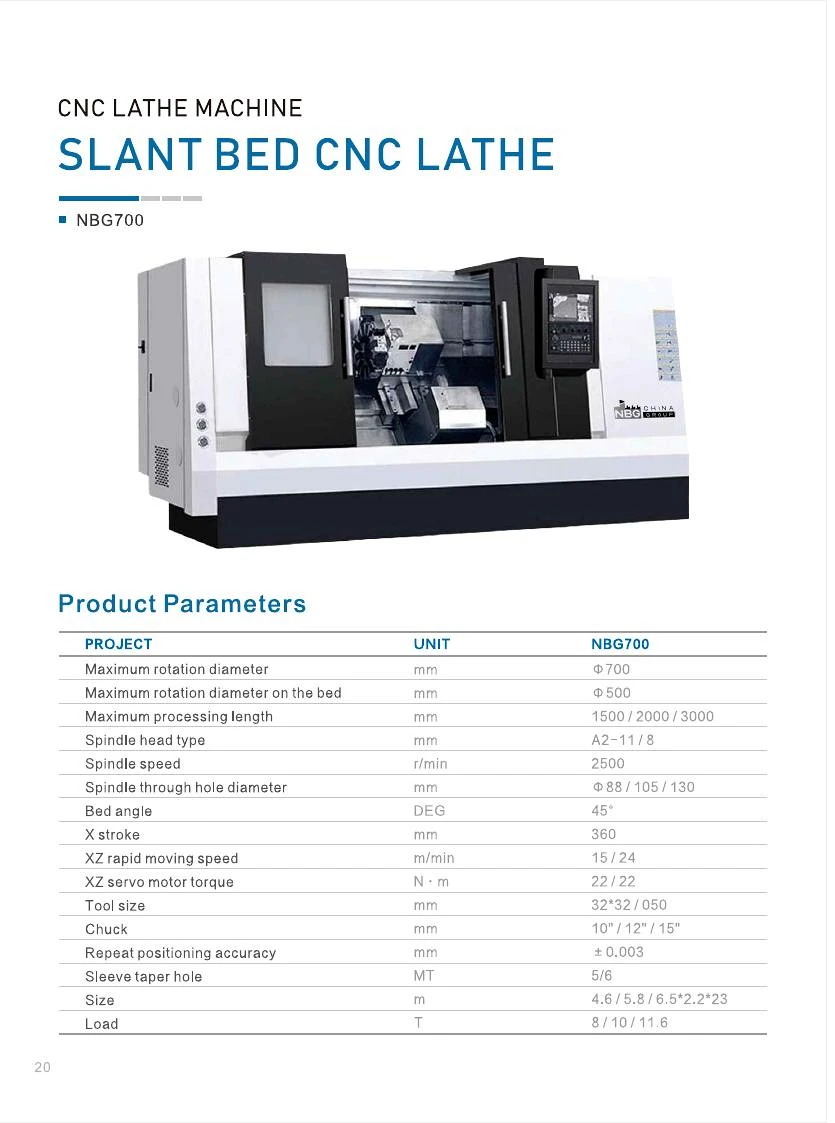

NBG700 Slant-Bed CNC Lathe
Industrial equipment specifications from the NBG Machines catalog, organized for application review and quotation.
Technical overview
Catalog specifications.
Options shown in the catalog must be confirmed against your workpiece, process, capacity, voltage and destination requirements.- Maximum swing
- Ø700 mm
- Processing length
- 1500 / 2000 / 3000 mm
- Spindle speed
- Up to 2500 rpm
- Spindle bore
- Ø88 / 105 / 130 mm
- Rapid traverse X/Z
- 15 / 24 m/min
- Repeat positioning
- ±0.003 mm
Applications
Typical use cases.
- Shafts
- Flanges
- Long turned parts
- Industrial component production
Share the material, workpiece dimensions, required process, expected throughput, power standard, destination and acceptance criteria. NBG Machines will confirm the applicable configuration rather than treating every catalog option as standard.
