Key features
Production-focused configuration.
- BT40 spindle
- High-speed three-axis traverse
- Compact vertical layout
- Repeatable precision machining
CNC Machine Tools / Machining Centers

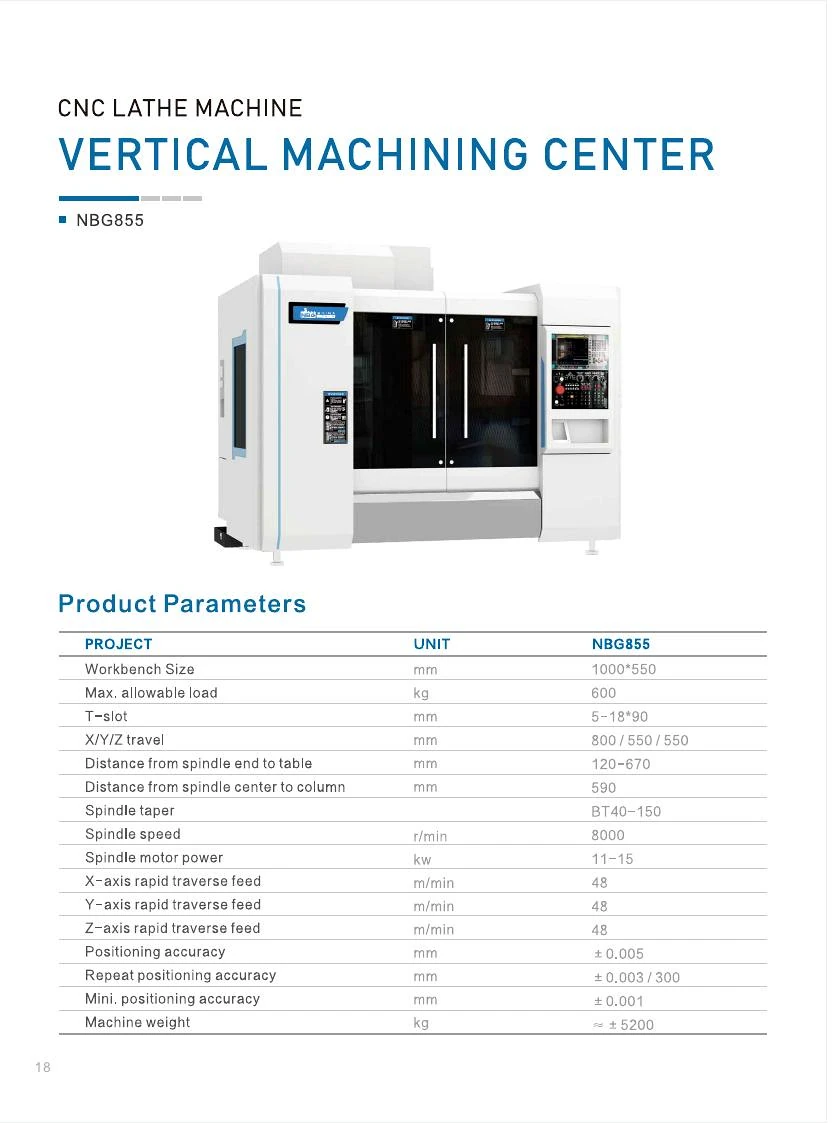

NBG855 Vertical Machining Center
Industrial equipment specifications from the NBG Machines catalog, organized for application review and quotation.
Technical overview
Catalog specifications.
Options shown in the catalog must be confirmed against your workpiece, process, capacity, voltage and destination requirements.- Worktable
- 1000×550 mm
- Table load
- 600 kg
- X/Y/Z travel
- 800 / 550 / 550 mm
- Spindle speed
- 8000 rpm
- Spindle motor
- 11–15 kW
- Repeat positioning
- ±0.003 mm / 300 mm
Applications
Typical use cases.
- Mold components
- Precision plates
- Automotive parts
- General CNC milling
Share the material, workpiece dimensions, required process, expected throughput, power standard, destination and acceptance criteria. NBG Machines will confirm the applicable configuration rather than treating every catalog option as standard.
Project inquiry
